Henbury

 Crater Name  Location  Latitude  Longitude  Diameter (km)  Age (Ma)  Exposed  Drilled  Target Rock**  Bolide Type***
 Henbury  Northern Territory  S 24° 34'  E 133° 8'  0.15  0.0042 ± 0.0019  Y  N  S  IIIAB
error
error
error
error
error
error
error

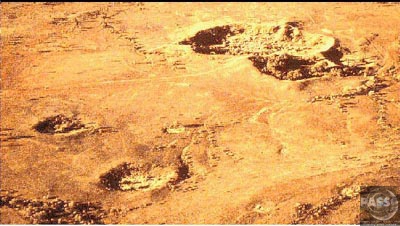

1. Aerial Photograph

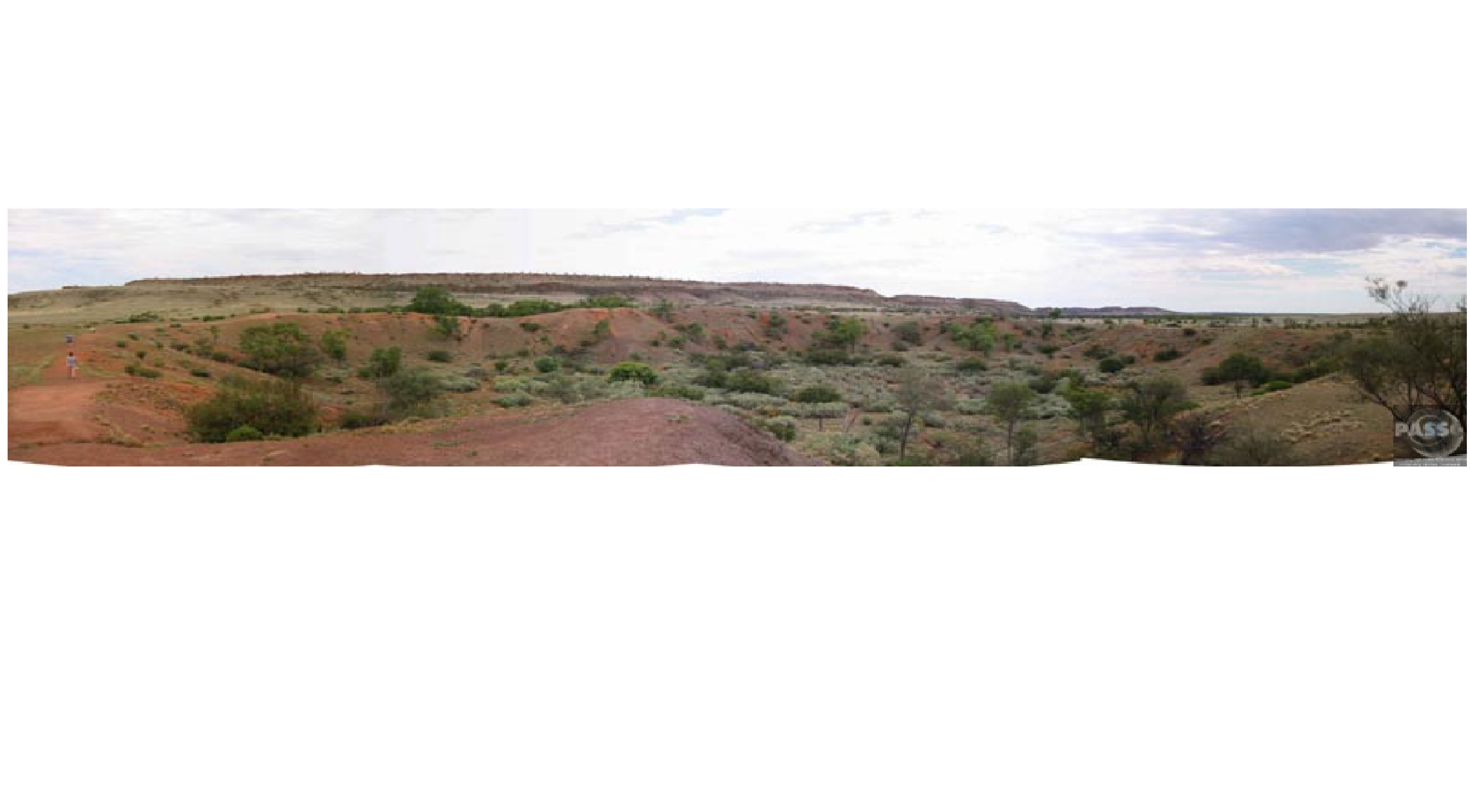

2. Photograph of main crater - 182 m from the camera to the far side and 18 metres deep (courtesy of David McKinnon)

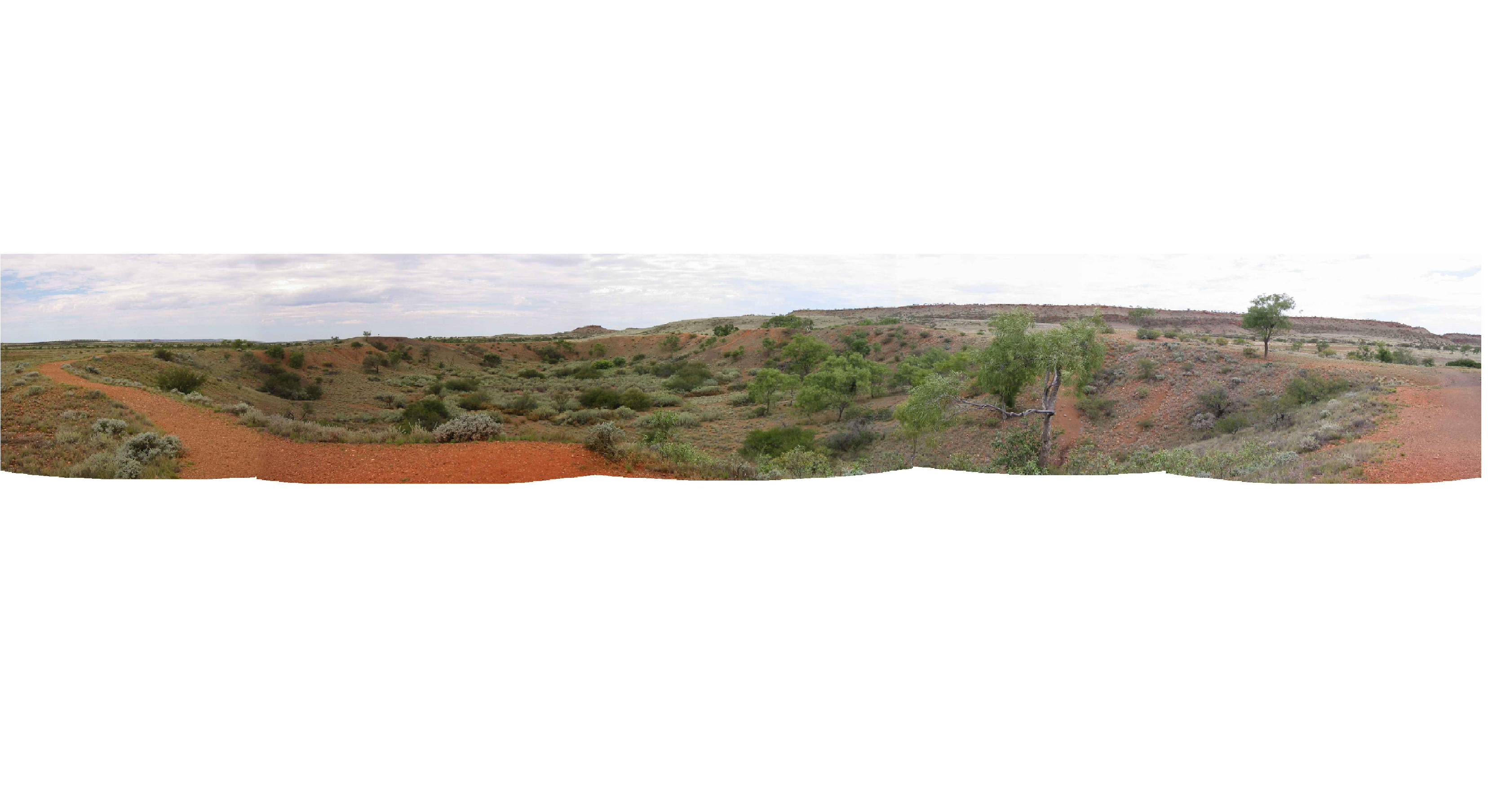

3. Photograph of the main crater from the other side (courtesy of David McKinnon)

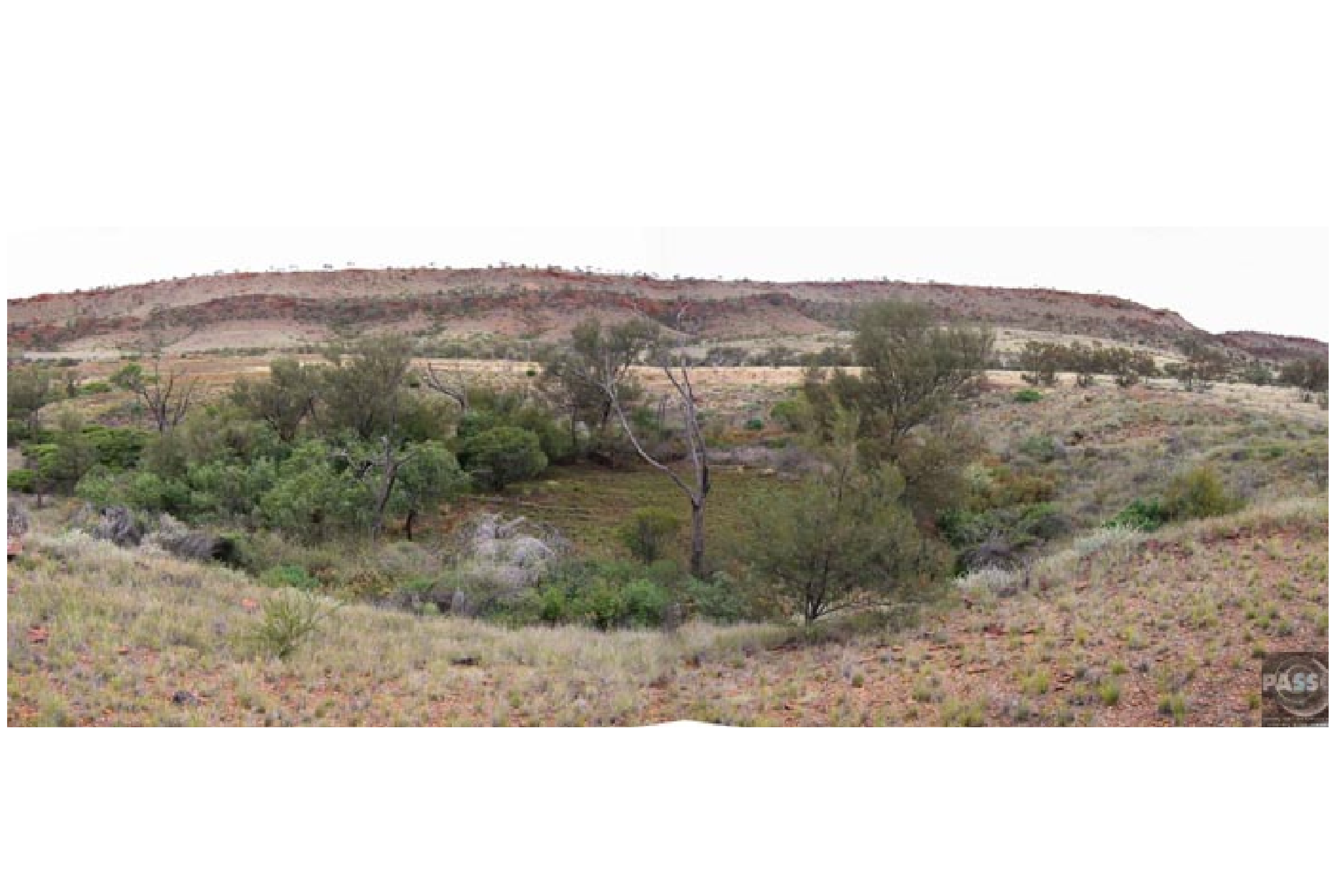

4. Photograph of one of the small Henbury craters - approximately 30m across and 8m deep (courtesy of David McKinnon)

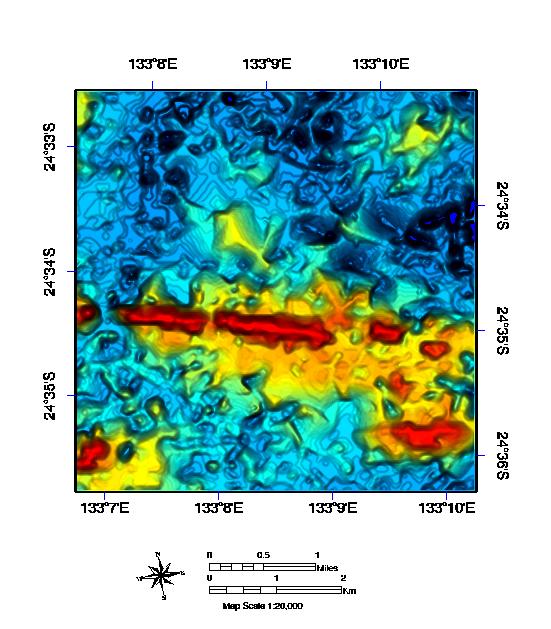

5. DEM image Provided by Dr. Carlos Roberto de Souza Filho

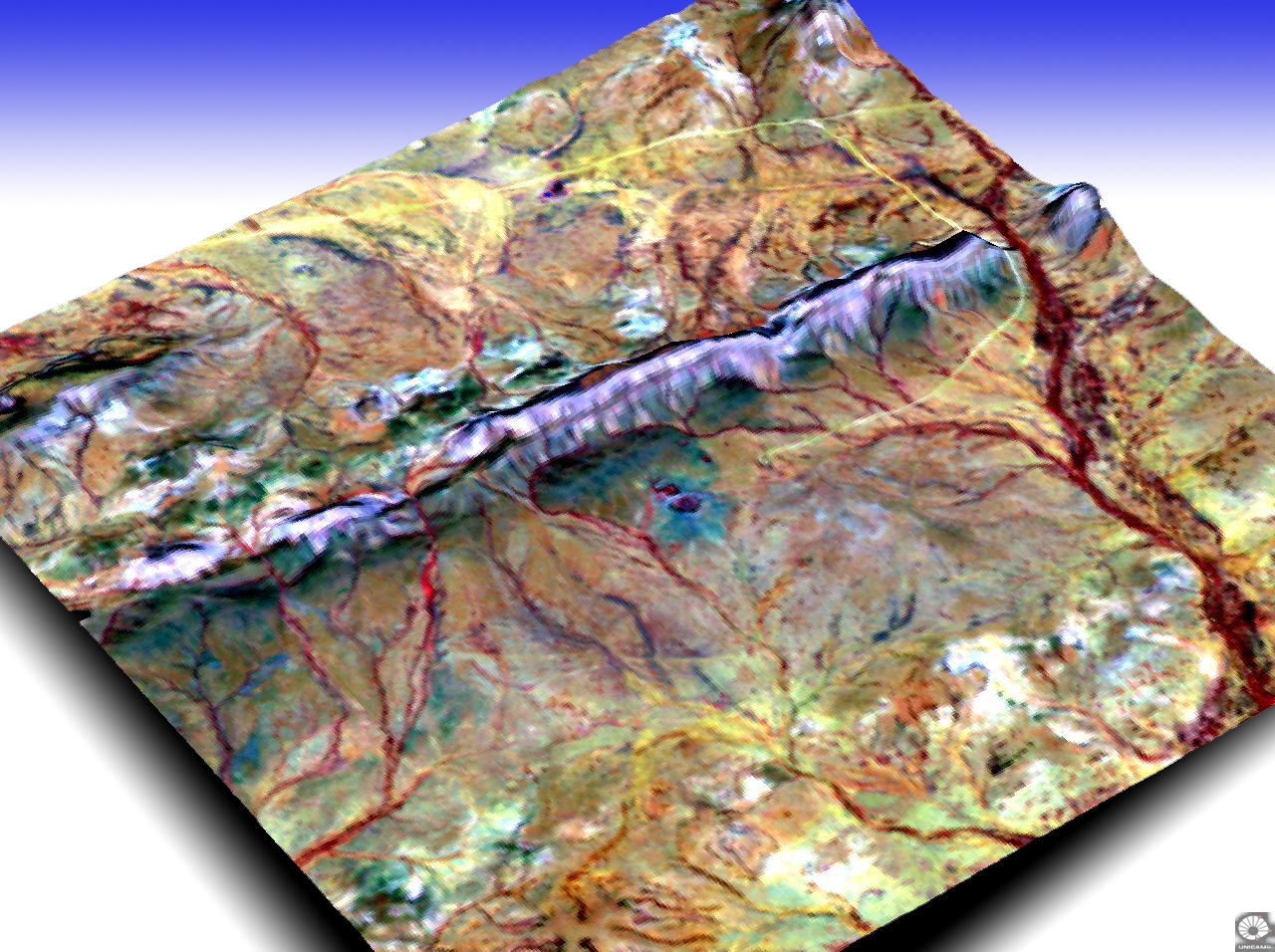

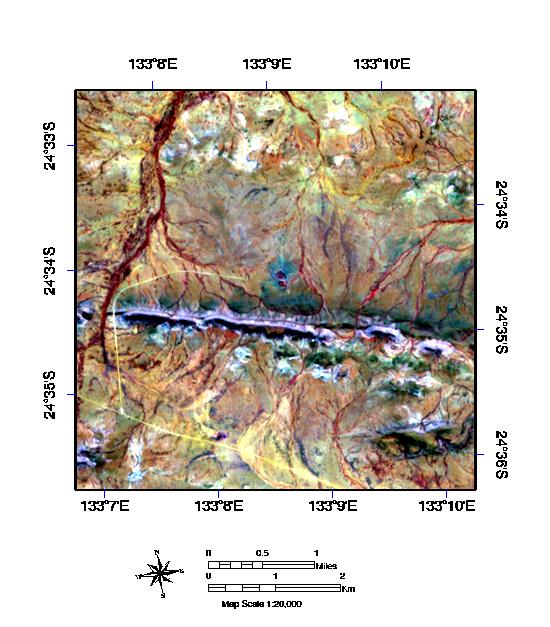

6 & 7. Image Provided by Dr. Carlos Roberto de Souza Filho

References
Alderman, A. R., The meteorite craters at Henbury, Central Australia, with addendum by L.J. Spencer. Mineralogical Magazine (London), v. 23, pp. 19-32. 1931.
Attrep, Jr,M., Orth, C.J. and Quintana,L.R., Chemical fractionation of siderophile elements in impactites from Australian meteorite craters (abstract). Lunar and Planetary Science XXII, pp. 39-40. 1991.
Avdeev, V. L., Kats, Ya.G. and Fel'dman,V.I., Traces of meteorites on the surfaces of planets (in Russian). Priroda, v. 4, pp. 12-19. 1979.
Axon, H. J., Steele-Perkins, E. M., Fracture mechanism of Henbury meteorite by separation along surfaces of shear faulting. Nature, v. 256, p. 635. 1975.
Bevan, A. W. R., Australian crater-forming meteorites. AGSO Journal of Australian Geology & Geophysics, v. 16, pp. 421-429. 1996.
Cockell, C. S., Lee, P., The Biology of Impact Craters - a review. Biol. Rev., 77, P. 279 - 310. 2002.
Compston, W., Taylor, S. R., Rb-Sr study of impact glass and country rocks from the Henbury meteorite crater field. Geochimica et Cosmochimica Acta, v. 33, pp. 1037-1043. 1969.
Cook, P. J., Henbury, N.T. Commonwealth of Australia, Bureau of Mineral Resources, Geology and Geophysics, 1:250,000 Geological Series - Explanatory Notes, pp. 3-19. 1968.
El Goresy, A., Fechtig, H. and Ottermann,J., The opaque minerals in impactite glasses. French, B.M. and Short, N.M., eds., Shock Metamorphism of Natural Materials, Mono Book Corp., Baltimore, MD, pp. 531-553. 1968.
Fel'dman, V. I., Rare-Earth elements in astrobleme impactites. Geochemistry International, v. 32, pp. 24-48. 1995.
Gibbons, R. V., Horz, F. and Morris,R.V., Fractionation of metallic spherules in Wabar, Henbury, and Monturaqui impactites (abstract). EOS, v. 56, pp. 1017. 1975.
Gibbons, R. V., Horz, F., Thompson, T.D. and Brownlee,D.E., Metal spherules in Wabar, Monturaqui, and Henbury impactites. Proceedings Lunar and Planatary Science Conference 7th, pp. 863-880. 1976.
Grieve, R. A. F., Meteorite impact studies featured in Australia. Episodes, v. 13, pp. 281-282. 1990.
Grieve, R. A. F., The record of impact on Earth: Implications for a major Cretaceous/Tertiary impact event. Geological Society of America, Special Paper 190, pp. 25-37. 1982.
Gurov, E. P., Gurova, E. P., A group of young meteorite craters in the marginal northwestern part of the Aldan Anteclise (in Russian). Doklady Akademii Nauk Ukrainskoi SSR, Seriya "B", v. 2, pp. 9-12. 1984.
Gurov, E. P., Gurova, E. P., Impact structures on the Earth's surface (in Russian). Geologicheskii Zhurnal, v. 47, pp. 117-124. 1987.
Haines, P. W., Impact Cratering and Distal Ejecta: The Australian Record. Australian Journal of Earth Sciences 52, P. 481 - 507. 2005.
Hodge, P. W., The Henbury meteorite craters. Smithsonian Contributions, Astrophysics, v. 8, pp. 199-201. 1965.
Hodge, P. W., Wright, F. W., Meteoritic particles in the soil surrounding the Henbury meteorite craters. Journal of Geophysical Research, v. 76, pp. 3880-3895. 1971.
Hörz, F., Ejecta of the Ries crater, Germany. The Geological Society of America Special Paper 190, pp. 39-55. 1982.
Ivanov, B. A., Basilevsky, A. T., Meteorite craters (in Russian). Priroda, v. 10, pp. 23-35. 1985.
Izokh, E. P., The Paradox of Age: Tektites and tektite showers (in Russian). Meteoritika, v. 44, pp. 127-134. 1985.
Kaputskina, I. G., Fel'dman, V. I., Fractionation of meteoritic material in the impact process (in Russian). Geokhimiya, v. 11, pp. 1547-1557. 1988.
Kohman, T. P., Goel, P. S., Terrestrial ages of meteorites from cosmogenic C14. International Atomic Energy Agency Report, pp. 395-411. 1963.
Krinov, E. L., Meteorite craters on the Earth's surface. Middlehurst, B.M. and Kuiper, G.P., eds., The Moon, Meteorites and Comets, University of Chicago Press, Chicago, v. IV, pp. 183-207. 1963.
Masaitis, V. L., Danilin, A.N., Maschak, M.S., Raykhlin, A.I., Selivanovskaya, T.V. and Shadenkov,Ye.M., The Geology of Astroblemes (in Russian). Leningrad, Nedra, 231 p. 1980.
McColl, D., Distribution and sculpturing of iron meteorites from the major craters at Henbury (abstract). Meteoritics, v. 25, pp. 384. 1990.
McColl, D., Henbury iron meteorites. Meteorite!, v. 3, pp. 8-10. 1997.
McHone J F., Dietz, R. S., Earth's multiple impact craters and astroblemes (abstract). Lunar and Planetary Science, v. XXIII, pp. 887-888. 1992.
McHone, J. F., Blumberg, D.G., Greeley, R. and Underwood, J.R.,Jr., Space shuttle radar images of terrestrial impact structures: SIR-C/X-SAR (abstract). Meteoritics, v. 30, pp. 543. 1995.
McHone, J.F., Greeley, R., Williams, K.K., Blumberg, D.G. and Kuzmin, R.O., Space shuttle observations of terrestrial impact structures using SIR-C and X-SAR radars, Meteoritics & Planetary Science, v.37, no.3, pp.407-420. 2002.
Milton, D. J., Michel, F. C., Structure of a ray crater at Henbury, Northern territory, Australia. U.S. Geological Survey Professional Paper 525-C, pp. C5-C11. 1965.
Milton, D. J., Structural geology of the Henbury meteorite craters, Northern Territory, Australia. U.S. Geological Survey Professional Paper 599-C, pp. C1-C17. 1972.
Milton, D. J., Structure fo the Henbury meteorite craters, Australia. French, B.M. and Short, N.M., eds., Shock Metamorphism of Natural Materials, Mono Book Corp., Baltimore, MD, pp. 115-116. 1968.
Miura, Y., Kato, T., Anomalous shocked quartz in Australian impact craters (abstract). Meteoritics, v. 26, pp. 373. 1991.
Newsom, H.E. and Boslough, M.B.E., Impact melt formation by low-altitude airburst processes, evidence from small terrestrial craters and numerical modeling, Lunar and Planetary Science Conference XXXIX, abstract #1460. 2008.
O'Keefe, J. A., Comments on "Chemical relationships among irghizites, zhamanshinites, Australasian tektites and Henbury impact glass". Geochimica et Cosmochimica Acta, v. 44, pp. 2151-2152. 1980.
Parfenova O V., Yakovlev, O. I., Some peculiarities of selective evaporation in target rocks after meteoritic impact. Impact and Explosion Cratering, D. J. Roddy, R. O. Pepin and R. B. Merrill, Pergamon Press, New York, pp. 843-859. 1977.
Rayner, J. M., Examination of the Henbury meteorite craters by the methods of applied geophysics. Walkom, U., ed., Australian and New Zealand Association Advancement of Science Report, v. 24, pp. 72-78. 1939.
Roddy, D. J., Shoemaker, E.M., Shoemaker, C.S. and Roddy,J.K., Aerial photography and geologic studies of impact structures in Australia (abstract). Lunar and Planetary Science XIX, pp. 990-991. 1988.
Shoemaker, E. M., Shoemaker, C. S., Impact structures of Australia (1987) (abstract). Lunar and Planetary Science XIX, pp. 1079-1080. 1988.
Shoemaker, E. M., Shoemaker, C.S., Nishiizomi, K., Kohl, C.P., Arnold, J.R., Klein, J., Fink, D., Middleton, R., Kubik, P.W. and Sharma,P., Ages of Australian meteorite craters - A preliminary report (abstract). Meteoritics, v. 25, pp. 409. 1990.
Simmons, K., Australia's Henbury craters. Sky and Telescope, v. 49, pp. 287-290. 1975.
Smith, T., Hodge, P., Microscopic meteoritic material surrounding meteorite craters (abstract). Meteoritics, v. 28, pp. 439. 1993.
Spencer, L. J., Hey, M. H., Meteoric iron and silica-glass from the meteorite craters of Henbury (central Australia) and Wabar (Arabia). Mineralogical Magazine, v. 23, pp. 387-404. 1933.
Storzer, D. and Wagner, G.A., Fission-track dating of meteorite impacts. Meteoritics, v. 12, pp. 368-369. 1977.
Storzer, D., Fission track dating of some impact craters in the age range between 6,000y and 300 m.y. (abstract). Meteoritics, v. 6, p. 319-320. 1971.
Taylor, S. R., Australites, Henbury impact glass and subgreywacke: A comparison of the abundances of 51 elements. Geochimica et Cosmochimica Acta, v. 30, pp. 1121-1136. 1966.
Taylor, S. R., Composition of meteorite impact glass across the Henbury strewnfield. Geochimica et Cosmochimica Acta, v. 31, pp. 961-968. 1967.
Taylor, S. R., Kolbe, P., Geochemistry of Henbury impact glass. Geochimica et Cosmochimica Acta, v. 29, pp. 741-745. 1965.
Taylor, S. R., Kolbe, P., Henbury impact glass--parent material and behavior of volatile elements during melting. Nature, v. 203, pp. 390-391. 1964.
Taylor, S. R., McLennan, S. M., Chemical relationships among irghizites, zhamanshinites, Australasian tektites and Henbury impact glasses. Geochimica et Cosmochimica Acta, v. 43, pp. 1551-1565. 1979.
Taylor, S. R., Similarity in composition between Henbury impact glass and australites. Geochimica et Cosmochimica Acta, v. 29, pp. 599-601. 1965.
Val'ter, A. A., Gurov, E. P., The system of mineralogical indicators in factors of shock metamorphism in granitoid rocks (in Russian). Kosmicheskaya mineralogiya, v. 11, pp. 92-102. 1978.
Yakovlev, O. I., Parfenova, O. V., Petrochemical features of impactites and the significance of evaporation and condensation processes in impact crater formation (in Russian). Meteoritika, v. 40, pp. 113-121. 1982.
Zotkin, I. T., Tsvetkov, V. I., Searches for meteorite craters on the Earth (in Russian). Astronomicheskii Vestnik, v. 4, pp. 55-56. 1970.
* pre-1977 K-Ar, Ar-Ar and Rb-Sr ages recalculated using the decay constants of Steiger and Jager (1977) Ages in millions of years (Ma) before present.

** Abbreviations: C - Crystalline Target; C-Ms - Metasedimentary Target; M - Mixed Target (i.e.sedimentary strata overlying crystalline basement); S - sedimentary target (i.e. no crystalline rocks affected by the impact event). From Osinski. G. R., Spray J. G., and Grieve R. A. F. 2007. Impact melting in sedimentary target rocks: A synthesis. In The Sedimentary Record of Meteorite Impacts, Geological Society of America Special Paper. Editors: Evans K. Horton W., King D., Morrow J., and Warme J. Geological Society of America: Boulder, in press.

***From Koeberl,C. Identification of meteoritic components in impactites. 1998, Koeberl, C. The Geochemistry and Cosmochemistry of Impacts. 2007 and PASSC Files. (IAB, IIIAB, IIIB, IIID - Iron Meteorite)
